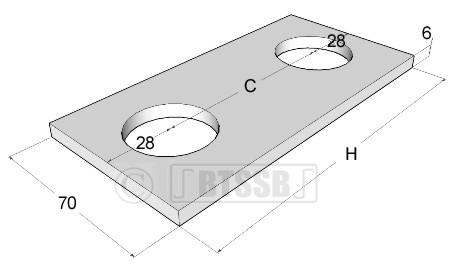

Packing plate / Distanzplatte für Pfetten- & Wandriegel
 |
 |
| Bezeichnung | Artikel-Nr. | Maß B [mm] | Maß t [mm] | Maß C [mm] | Maß H [mm] | Passend zu Profil Baureihen |
| PP1 | 68 | 70 | 6 | 56 | 112 | 142 |
| PP2 | 69 | 70 | 6 | 86 | 142 | 172, 170 |
| PP3 | 70 | 70 | 6 | 116 | 172 | 202 |
| PP4 | 71 | 70 | 6 | 146 | 202 | 232, 230 |
| PP5 | 72 | 70 | 6 | 176 | 232 | 262, 270 |
| PP6 | 73 | 70 | 6 | 195 | 251 | 302 |
| PP7 | 74 | 70 | 6 | 235 | 291 | 342, 330 |
| PP140+150-60 | 2395 | 70 | 6 | 60 | 116 | 140, 150 |
| PP150-70 | 2396 | 70 | 6 | 70 | 126 | 150 |
| PP2875 | 2875 | 70 | 6 | 150 | 206 | |
| PP3676 | 3676 | 70 | 6 | 100 | 156 | |
| PP172s / PP2s | 3883 | 60 | 6 | 86 | 142 | 172, 170 |
| PP3898 | 3898 | 60 | 6 | 60 | 120 | |
| PP3899 | 3899 | 60 | 6 | 100 | 160 | |
| PP4284 | 4284 | 60 | 6 | 176 | 236 | |
| PP4624 | 4624 | 70 | 6 | 236 | 296 | |
| PP4703 | 4703 | 70 | 6 | 235 | 299 | |
| PP232x2 | 4760 | 130 | 6 | 146 | 206 | 232, 230 |
| PP4814 | 4814 | 50 | 6 | 80 | 144 | |
| PP4830 | 4830 | 70 | 6 | 176 | 236 | |
| PP4910 | 4910 | 70 | 6 | 86 | 146 | 172, 170 |
| PP4911 | 4911 | 70 | 6 | 134 | 194 | |
| PP4912 | 4912 | 70 | 6 | 235 | 295 | |
| PP4922 | 4922 | 60 | 6 | 60 | 130 | |
| PP4923 | 4923 | 80 | 10 | 240 | 300 | |
| PP4927 | 4927 | 60 | 6 | 120 | 200 | |
| PP4928 | 4928 | 60 | 6 | 195 | 255 | |
| PP4934 | 4934 | 60 | 6 | 86 | 146 | 172, 170 |
| PP4938 | 4938 | 70 | 6 | 170 | 240 | |
| PP4943 | 4943 | 70 | 6 | 56 | 116 | 142 |
| PP4944 | 4944 | 70 | 6 | 116 | 176 | |
| PP4961 | 4961 | 70 | 6 | 146 | 206 | |
| PP4962 | 4962 | 70 | 6 | 114 | 174 | |
| PP4987 | 4987 | 60 | 6 | 65 | 125 | |
| PP4988 | 4988 | 60 | 6 | 90 | 150 | |
| PP4989 | 4989 | 130 | 6 | 65 | 125 | |
| PP4990 | 4990 | 130 | 6 | 90 | 150 | |
| PP4997 | 4997 | 60 | 6 | 236 | 310 | |
| PP4998 | 4998 | 60 | 6 | 236 | 300 | |
| PP4999 | 4999 | 60 | 6 | 116 | 172 | |
| PP5000 | 5000 | 60 | 6 | 56 | 110 | |
| PP5039 | 5039 | 70 | 6 | 70 | 126 | 150 |
| PP5040 | 5040 | 70 | 6 | 150 | 230 | |
| PP5041 | 5041 | 140 | 6 | 116 | 176 | |
| PP5061 | 5061 | 60 | 6 | 120 | 180 | |
| PP5062 | 5062 | 70 | 6 | 50 | 110 | |
| PP5076 | 5076 | 70 | 6 | 140 | 200 | |
| PP5103 | 5103 | 60 | 6 | 116 | 172 | |
| PP5104 | 5104 | 60 | 6 | 146 | 202 | |
| PP5105 | 5105 | 60 | 6 | 146 | 208 | |
| PP5106 | 5106 | 130 | 6 | 146 | 210 | |
| PP5107 | 5107 | 60 | 6 | 235 | 291 | |
| PP5108 | 5108 | 60 | 6 | 235 | 307 | |
| PP5129 | 5129 | 70 | 6 | 75 | 135 | |
| PP5158 | 5158 | 64 | 6 | 116 | 170 | |
| PP5166 | 5166 | 70 | 25 | 116 | 170 | |
| PP5176 | 5176 | 110 | 6 | 70 | 140 | |
| PP5177 | 5177 | 60 | 6 | 50 | 110 | |
| PP5178 | 5178 | 70 | 6 | 240 | 310 | |
| PP5222 | 5222 | 70 | 6 | 150 | 210 | |
| PP5223 | 5223 | 140 | 6 | 150 | 210 | |
| PP5313 | 5313 | 60 | 6 | 116 | 176 | |
| PP5314 | 5314 | 60 | 6 | 155 | 215 | |
| PP5370 | 5370 | 70 | 6 | 380 | 440 | |
| PP5371 | 5371 | 70 | 6 | 195 | 255 |
