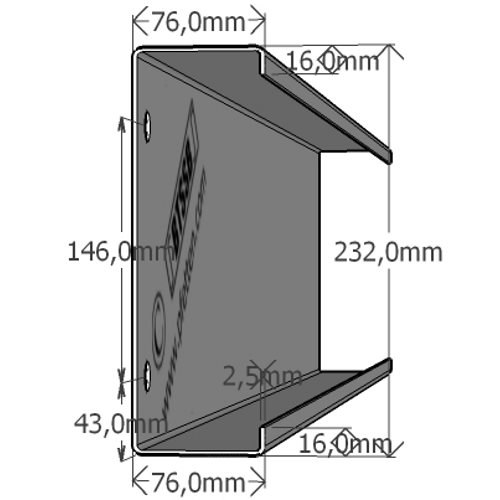

Bezeichnung: 232C25 Artikel-Nr.: 65 |
 |
 |
|
Bartmann Total Solutions in Steel Buildings - Casa Mondiale - CH-6745 Giornico
/ TI - Switzerland Tel. +41-(0)91 864 2230 - FAX +41-(0)91 864 2235 - e-Mail: info @ pfetten.com - URL: www.pfetten.com |
Bezeichnung: 232C25 Artikel-Nr.: 65 |
|
|
| Trägheitsmomente | Schubmittelpunkt | Schwerpunkt | Torsions- wider- stand |
Fläche | |||||||
| ly [cm4] |
ly,efB [cm4] |
lz [cm4] |
yM [mm] |
zm [mm] |
zs [mm] |
zs,efB [mm] |
ys [mm] |
ys,efB [mm] |
lT [cm4] |
AefB [mm²] |
AefD [mm²] |
| 807,78 | 736,18 | 69,63 | -30,30 | 114,75 | 114,75 | 118,80 | 18,60 | 17,50 | 0,2014 | 963 | 617 |
| Trägheitsradius | Widerstands- moment |
min. Widerstands- moment |
Biege- moment |
Wölb- wider- stand |
||||
| iy [cm] |
iZ [cm] |
iy,efB [cm] |
Wy [cm³] |
Wy,ef [cm³] |
Wz [cm³] |
Wz,ef [cm³] |
My,ef [kNm] |
Cm [cm6] |
| 8,99 | 2,64 | 8,74 | 69,65 | 63,61 | 12,42 | 10,96 | 22,26 | 7007,60 |
