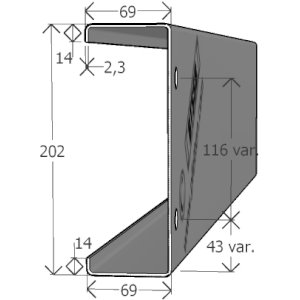

Bezeichnung: 202C23 Artikel-Nr.: 59 |
 |
 |
|
Bartmann Total Solutions in Steel Buildings - Casa Mondiale - CH-6745 Giornico
/ TI - Switzerland Tel. +41-(0)91 864 2230 - FAX +41-(0)91 864 2235 - e-Mail: info @ pfetten.com - URL: www.pfetten.com |
Bezeichnung: 202C23 Artikel-Nr.: 59 |
|
|
| Trägheitsmomente | Schubmittelpunkt | Schwerpunkt | Torsions- wider- stand |
Fläche | |||||||
| ly [cm4] |
ly,efB [cm4] |
lz [cm4] |
yM [mm] |
zm [mm] |
zs [mm] |
zs,efB [mm] |
ys [mm] |
ys,efB [mm] |
lT [cm4] |
AefB [mm²] |
AefD [mm²] |
| 501,36 | 457,81 | 46,65 | -27,70 | 99,85 | 99,85 | 103,40 | 17,20 | 16,10 | 0,1381 | 784 | 513 |
| Trägheitsradius | Widerstands- moment |
min. Widerstands- moment |
Biege- moment |
Wölb- wider- stand |
||||
| iy [cm] |
iZ [cm] |
iy,efB [cm] |
Wy [cm³] |
Wy,ef [cm³] |
Wz [cm³] |
Wz,ef [cm³] |
My,ef [kNm] |
Cm [cm6] |
| 7,86 | 2,40 | 7,64 | 49,65 | 45,30 | 9,21 | 8,12 | 15,85 | 3544,80 |
