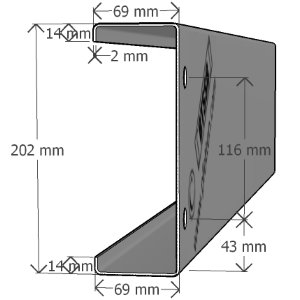

Bezeichnung: 202C20 Artikel-Nr.: 58 |
 |
 |
|
Bartmann Total Solutions in Steel Buildings - Casa Mondiale - CH-6745 Giornico
/ TI - Switzerland Tel. +41-(0)91 864 2230 - FAX +41-(0)91 864 2235 - e-Mail: info @ pfetten.com - URL: www.pfetten.com |
Bezeichnung: 202C20 Artikel-Nr.: 58 |
|
|
| Trägheitsmomente | Schubmittelpunkt | Schwerpunkt | Torsions- wider- stand |
Fläche | |||||||
| ly [cm4] |
ly,efB [cm4] |
lz [cm4] |
yM [mm] |
zm [mm] |
zs [mm] |
zs,efB [mm] |
ys [mm] |
ys,efB [mm] |
lT [cm4] |
AefB [mm²] |
AefD [mm²] |
| 437,94 | 365,13 | 41,05 | -27,80 | 100,00 | 100,00 | 106,80 | 17,30 | 16,70 | 0,0904 | 645 | 411 |
| Trägheitsradius | Widerstands- moment |
min. Widerstands- moment |
Biege- moment |
Wölb- wider- stand |
||||
| iy [cm] |
iZ [cm] |
iy,efB [cm] |
Wy [cm³] |
Wy,ef [cm³] |
Wz [cm³] |
Wz,ef [cm³] |
My,ef [kNm] |
Cm [cm6] |
| 7,88 | 2,41 | 7,52 | 43,37 | 37,06 | 8,10 | 6,98 | 12,97 | 3132,70 |
