Bezeichnung: 202C18 Artikel-Nr.: 57 |
 |
 |
|
Bartmann Total Solutions in Steel Buildings - Casa Mondiale - CH-6745 Giornico
/ TI - Switzerland Tel. +41-(0)91 864 2230 - FAX +41-(0)91 864 2235 - e-Mail: info @ pfetten.com - URL: www.pfetten.com |
Bezeichnung: 202C18 Artikel-Nr.: 57 |
|
|

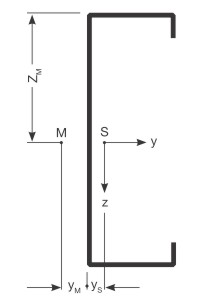

| Trägheitsmomente | Schubmittelpunkt | Schwerpunkt | Torsions- wider- stand |
Fläche | |||||||
| ly [cm4] |
ly,efB [cm4] |
lz [cm4] |
yM [mm] |
zm [mm] |
zs [mm] |
zs,efB [mm] |
ys [mm] |
ys,efB [mm] |
lT [cm4] |
AefB [mm²] |
AefD [mm²] |
| 395,13 | 298,06 | 37,22 | -28,00 | 100,10 | 100,10 | 110,40 | 17,40 | 17,50 | 0,0656 | 545 | 344 |
| Trägheitsradius | Widerstands- moment |
min. Widerstands- moment |
Biege- moment |
Wölb- wider- stand |
||||
| iy [cm] |
iZ [cm] |
iy,efB [cm] |
Wy [cm³] |
Wy,ef [cm³] |
Wz [cm³] |
Wz,ef [cm³] |
My,ef [kNm] |
Cm [cm6] |
| 7,89 | 2,42 | 7,40 | 39,13 | 31,21 | 7,34 | 6,22 | 10,92 | 2848,50 |
