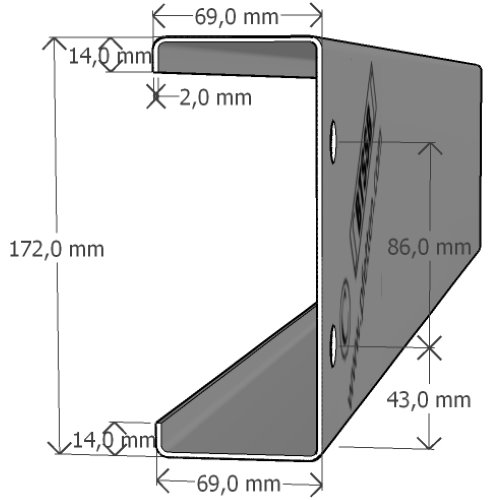

Bezeichnung: 172C20 Artikel-Nr.: 66 |
 |
 |
|
Bartmann Total Solutions in Steel Buildings - Casa Mondiale - CH-6745 Giornico
/ TI - Switzerland Tel. +41-(0)91 864 2230 - FAX +41-(0)91 864 2235 - e-Mail: info @ pfetten.com - URL: www.pfetten.com |
Bezeichnung: 172C20 Artikel-Nr.: 66 |
|
|
| Trägheitsmomente | Schubmittelpunkt | Schwerpunkt | Torsions- wider- stand |
Fläche | |||||||
| ly [cm4] |
ly,efB [cm4] |
lz [cm4] |
yM [mm] |
zm [mm] |
zs [mm] |
zs,efB [mm] |
ys [mm] |
ys,efB [mm] |
lT [cm4] |
AefB [mm²] |
AefD [mm²] |
| 301,49 | 267,35 | 39,13 | -29,20 | 85,00 | 85,00 | 89,00 | 18,90 | 17,60 | 0,0828 | 617 | 413 |
| Trägheitsradius | Widerstands- moment |
min. Widerstands- moment |
Biege- moment |
Wölb- wider- stand |
||||
| iy [cm] |
iZ [cm] |
iy,efB [cm] |
Wy [cm³] |
Wy,ef [cm³] |
Wz [cm³] |
Wz,ef [cm³] |
My,ef [kNm] |
Cm [cm6] |
| 6,83 | 2,46 | 6,58 | 35,06 | 31,15 | 7,97 | 6,88 | 10,90 | 2186,60 |
