Z-Pfetten mit schlägem Steg

Quick Find: Clear Filters

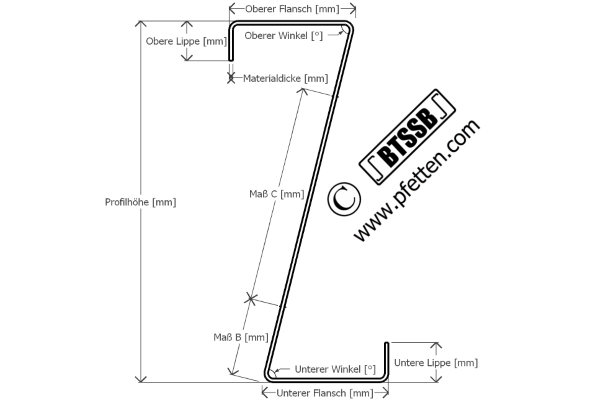

Bezeichnung Artikel -
Nr.
DIN Form Obere
Lippe
[mm]
Oberer
Flansch
[mm]
Winkel Steg
[mm]
Winkel Unterer
Flansch
[mm]
Untere
Lippe
[mm]
Material-
dicke
[mm]
Gewicht
[kg/m]
Maß
B
[mm]
Maß
C
[mm]
Ideal-
dach-
neigung
Z3G 152/70/15x1.5 2203 Z15/70/152/70/15*1.5 Z 15 70 65.3° 152 65.3° 70 15 1.50 3.80
Z3G 160/70*1.5 DN4° 1924 Z22/70/160/70/22*1,5 Z 22 70 70° 160 70° 70 22 1.50 3.87 50 60
Z3G 160-70x1.5 DN6° 1925 Z22/70/160/70/22*1,5 Z 22 70 72° 160 72° 70 22 1.50 3.87 50 60
Z3G 160-70x1.5 DN10° 1926 Z22/70/160/70/22*1,5 Z 22 70 76° 160 76° 70 22 1.50 3.87 50 60 10°
Z3G 160-70x1.5 DN14° 1927 Z22/70/160/70/22*1,5 Z 22 70 80° 160 80° 70 22 1.50 3.87 50 60 14°
Z3G 160-70x1.5 DN20° 1928 Z22/70/160/70/22*1,5 Z 22 70 86° 160 86° 70 22 1.50 3.87 50 60 20°
Z3G 160-70x1.75 DN4° 1929 Z22/70/160/70/22*1,75 Z 22 70 70° 160 70° 70 22 1.75 4.52 50 60
Z3G 160-70x1.75 DN6° 1930 Z22/70/160/70/22*1,75 Z 22 70 72° 160 72° 70 22 1.75 4.52 50 60
Z3G 160-70x1.75 DN10° 1931 Z22/70/160/70/22*1,75 Z 22 70 76° 160/ 76° 70 22 1.75 4.52 50 60 10°
Z3G 160-70x1.75 DN14° 1932 Z22/70/160/70/22*1,75 Z 22 70 80° 160 80° 70 22 1.75 4.52 50 60 14°
Z3G 160-70x1.75 DN20° 1933 Z22/70/160/70/22*1,75 Z 22 70 86° 160 86° 70 22 1.75 4.52 50 60 20°
Z3G 180-70x1.5 DN3° 1934 Z22/70/180/70/22*1,5 Z 22 70 73° 180 73° 70 22 1.50 4.11 40 100
Z3G 180-70x1.5 DN6° 1935 Z22/70/180/70/22*1,5 Z 22 70 76° 180 76° 70 22 1.50 4.11 40 100
Z3G 180-70x1.5 DN10° 1936 Z22/70/180/70/22*1,5 Z 22 70 79° 180 79° 70 22 1.50 4.11 40 100 10°
Z3G 180-70x1.5 DN14° 1937 Z22/70/180/70/22*1,5 Z 22 70 83° 180 83° 70 22 1.50 4.11 40 100 14°
Z3G 180-70x1.5 DN20° 1938 Z22/70/180/70/22*1,5 Z 22 70 90° 180 90° 70 22 1.50 4.11 40 100 20°
Z3G 180-70x1.75 DN3° 1939 Z22/70/180/70/22*1,75 Z 22 70 73° 180 73° 70 22 1.75 4.79 40 100
Z3G 180-70x1.75 DN6° 1940 Z22/70/180/70/22*1,75 Z 22 70 76° 180 76° 70 22 1.75 4.79 40 100
Z3G 180-70x1.75 DN10° 1941 Z22/70/180/70/22*1,75 Z 22 70 79° 180 79° 70 22 1.75 4.79 40 100 10°
Z3G 180-70x1.75 DN14° 1942 Z22/70/180/70/22*1,75 Z 22 70 83° 180 83° 70 22 1.75 4.79 40 100 14°
Z3G 180-70x1.75 DN20° 1943 Z22/70/180/70/22*1,75 Z 22 70 90° 180 90° 70 22 1.75 4.79 40 100 20°
Z3G 180-70x2.0 DN3° 1944 Z22/70/180/70/22*2,0 Z 22 70 73° 180 73° 70 22 2.00 5.46 40 100
Z3G 180-70x2.0 DN6° 1945 Z22/70/180/70/22*2,0 Z 22 70 76° 180 76° 70 22 2.00 5.46 40 100
Z3G 180-70x2.0 DN10° 1946 Z22/70/180/70/22*2,0 Z 22 70 79° 180 79° 70 22 2.00 5.46 40 100 10°
Z3G 180-70x2.0 DN14° 1947 Z22/70/180/70/22*2,0 Z 22 70 83° 180 83° 70 22 2.00 5.46 40 100 14°
Z3G 180-70x2.0 DN20° 1948 Z22/70/180/70/22*2,0 Z 22 70 90° 180 90° 70 22 2.00 5.46 40 100 20°
Z3G 180-70x2.5 DN3° 1949 Z22/70/180/70/22*2,5 Z 22 70 73° 180 73° 70 22 2.50 6.79 40 100
Z3G 180-70x2.5 DN6° 1950 Z22/70/180/70/22*2,5 Z 22 70 76° 180 76° 70 22 2.50 6.79 40 100
Z3G 180-70x2.5 DN10° 1951 Z22/70/180/70/22*2,5 Z 22 70 79° 180 79° 70 22 2.50 6.79 40 100 10°
Z3G 180-70x2.5 DN14° 1952 Z22/70/180/70/22*2,5 Z 22 70 83° 180 83° 70 22 2.50 6.79 40 100 14°
Z3G 180-70x2.5 DN20° 1953 Z22/70/180/70/22*2,5 Z 22 70 90° 180 90° 70 22 2.50 6.79 40 100 20°
Z3G 200-70x1.5 DN3° 1954 Z22/70/200/70/22*1,5 Z 22 70 76° 200 76° 70 22 1.50 4.34 40 120
Z3G 200-70x1.5 DN6° 1955 Z22/70/200/70/22*1,5 Z 22 70 78° 200 78° 70 22 1.50 4.34 40 120
Z3G 200-70x1.5 DN10° 1956 Z22/70/200/70/22*1,5 Z 22 70 82° 200 82° 70 22 1.50 4.34 40 120 10°
Z3G 200-70x1.5 DN14° 1957 Z22/70/200/70/22*1,5 Z 22 70 86° 200 86° 70 22 1.50 4.34 40 120 14°
Z3G 200-70x1.5 DN18° 1958 Z22/70/200/70/22*1,5 Z 22 70 90° 200 90° 70 22 1.50 4.34 40 120 18°
Z3G 200-70x1.75 DN3° 1959 Z22/70/200/70/22*1,75 Z 22 70 76° 200 76° 70 22 1.75 5.07 40 120
Z3G 200-70x1.75 DN6° 1960 Z22/70/200/70/22*1,75 Z 22 70 78° 200 78° 70 22 1.75 5.07 40 120
Z3G 200-70x1.75 DN10° 1961 Z22/70/200/70/22*1,75 Z 22 70 82° 200 82° 70 22 1.75 5.07 40 120 10°
Z3G 200-70x1.75 DN14° 1962 Z22/70/200/70/22*1,75 Z 22 70 86° 200 86° 70 22 1.75 5.07 40 120 14°
Z3G 200-70x1.75 DN18° 1963 Z22/70/200/70/22*1,75 Z 22 70 90° 200 90° 70 22 1.75 5.07 40 120 18°
Z3G 200-70x2.0 DN3° 1964 Z22/70/200/70/22*2,0 Z 22 70 76° 200 76° 70 22 2.00 5.78 40 120
Z3G 200-70x2.0 DN6° 1965 Z22/70/200/70/22*2,0 Z 22 70 78° 200 78° 70 22 2.00 5.78 40 120
Z3G 200-70x2.0 DN10° 1966 Z22/70/200/70/22*2,0 Z 22 70 82° 200 82° 70 22 2.00 5.78 40 120 10°
Z3G 200-70x2.0 DN14° 1967 Z22/70/200/70/22*2,0 Z 22 70 86° 200 86° 70 22 2.00 5.78 40 120 14°
Z3G 200-70x2.0 DN18° 1968 Z22/70/200/70/22*2,0 Z 22 70 90° 200 90° 70 22 2.00 5.78 40 120 18°
Z3G 200-70x2.5 DN3° 1969 Z22/70/200/70/22*2,5 Z 22 70 76° 200 76° 70 22 2.50 7.18 40 120
Z3G 200-70x2.5 DN6° 1970 Z22/70/200/70/22*2,5 Z 22 70 78° 200 78° 70 22 2.50 7.18 40 120
Z3G 200-70x2.5 DN10° 1971 Z22/70/200/70/22*2,5 Z 22 70 82° 200 82° 70 22 2.50 7.18 40 120 10°
Z3G 200-70x2.5 DN14° 1972 Z22/70/200/70/22*2,5 Z 22 70 86° 200 86° 70 22 2.50 7.18 40 120 14°
Z3G 200-70x2.5 DN18° 1973 Z22/70/200/70/22*2,5 Z 22 70 90° 200 90° 70 22 2.50 7.18 40 120 18°
z3g27-76-200-76-27x2_50sn14 3349 Z27/(120°)76/(76°)200/(76°)76/(120°)27*2,5 Z 27 76 120° 200 76° 76 27 2.50 7.77
Z3G 240-70x2.0 DN3° 1974 Z22/70/240/70/22*2,0 Z 22 70 79° 240 79° 70 22 2.00 6.41 60 120
Z3G 240-70x2.0 DN6° 1975 Z22/70/240/70/22*2,0 Z 22 70 82° 240 82° 70 22 2.00 6.41 60 120
Z3G 240-70x2.0 DN10° 1976 Z22/70/240/70/22*2,0 Z 22 70 86° 240 86° 70 22 2.00 6.41 60 120 10°
Z3G 240-70x2.0 DN14° 1977 Z22/70/240/70/22*2,0 Z 22 70 90° 240 90° 70 22 2.00 6.41 60 120 14°
Z3G 240-70x2.5 DN3° 1978 Z22/70/240/70/22*2,5 Z 22 70 79° 240 79° 70 22 2.50 7.97 60 120
Z3G 240-70x2.5 DN6° 1979 Z22/70/240/70/22*2,5 Z 22 70 82° 240 82° 70 22 2.50 7.97 60 120
Z3G 240-70x2.5 DN10° 1980 Z22/70/240/70/22*2,5 Z 22 70 86° 240 86° 70 22 2.50 7.97 60 120 10°
Z3G 240-70x2.5 DN14° 1981 Z22/70/240/70/22*2,5 Z 22 70 90° 240 90° 70 22 2.50 7.97 60 120 14°
Z3G 240-70x3.0 DN3° 1982 Z22/70/240/70/22*3,0 Z 22 70 79° 240 79° 70 22 3.00 9.51 60 120
Z3G 240-70x3.0 DN6° 1983 Z22/70/240/70/22*3,0 Z 22 70 82° 240 82° 70 22 3.00 9.51 60 120
Z3G 240-70x3.0 DN10° 1984 Z22/70/240/70/22*3,0 Z 22 70 86° 240 86° 70 22 3.00 9.51 60 120 10°
Z3G 240-70x3.0 DN14° 1985 Z22/70/240/70/22*3,0 Z 22 70 90° 240 90° 70 22 3.00 9.51 60 120 14°
Z3G 240-85x2.0 DN3° 1986 Z22/85/240/85/22*2,0 Z 22 85 76° 240 76° 85 22 2.00 6.88 60 120
Z3G 240-85x2.0 DN6° 1987 Z22/85/240/85/22*2,0 Z 22 85 79° 240 79° 85 22 2.00 6.88 60 120
Z3G 240-85x2.0 DN10° 1988 Z22/85/240/85/22*2,0 Z 22 85 83° 240 83° 85 22 2.00 6.88 60 120 10°
Z3G 240-85x2.0 DN14° 1989 Z22/85/240/85/22*2,0 Z 22 85 87° 240 87° 85 22 2.00 6.88 60 120 14°
Z3G 240-85x2.0 DN18° 1990 Z22/85/240/85/22*2,0 Z 22 85 90° 240 90° 85 22 2.00 6.88 60 120 18°
Z3G 240-85x2.5 DN3° 1991 Z22/85/240/85/22*2,5 Z 22 85 76° 240 76° 85 22 2.50 8.56 60 120
Z3G 240-85x2.5 DN6° 1992 Z22/85/240/85/22*2,5 Z 22 85 79° 240 79° 85 22 2.50 8.56 60 120
Z3G 240-85x2.5 DN10° 1993 Z22/85/240/85/22*2,5 Z 22 85 83° 240 83° 85 22 2.50 8.56 60 120 10°
Z3G 240-85x2.5 DN14° 1994 Z22/85/240/85/22*2,5 Z 22 85 87° 240 87° 85 22 2.50 8.56 60 120 14°
Z3G 240-85x2.5 DN18° 1995 Z22/85/240/85/22*2,5 Z 22 85 90° 240 90° 85 22 2.50 8.56 60 120 18°
Z3G 240-85x3.0 DN3° 1996 Z22/85/240/85/22*3,0 Z 22 85 76° 240 76° 85 22 3.00 10.22 60 120
Z3G 240-85x3.0 DN6° 1997 Z22/85/240/85/22*3,0 Z 22 85 79° 240 79° 85 22 3.00 10.22 60 120
Z3G 240-85x3.0 DN10° 1998 Z22/85/240/85/22*3,0 Z 22 85 83° 240 83° 85 22 3.00 10.22 60 120 10°
Z3G 240-85x3.0 DN14° 1999 Z22/85/240/85/22*3,0 Z 22 85 87° 240 87° 85 22 3.00 10.22 60 120 14°
Z3G 240-85x3.0 DN18° 2000 Z22/85/240/85/22*3,0 Z 22 85 90° 240 90° 85 22 3.00 10.22 60 120 18°
Z3G 260-70x2.0 DN3° 2001 Z22/70/260/70/22*2,0 Z 22 70 81° 260 81° 70 22 2.00 6.72 50 160
Z3G 260-70x2.0 DN6° 2002 Z22/70/260/70/22*2,0 Z 22 70 84° 260 84° 70 22 2.00 6.72 50 160
Z3G 260-70x2.0 DN10° 2003 Z22/70/260/70/22*2,0 Z 22 70 88° 260 88° 70 22 2.00 6.72 50 160 10°
Z3G 260-70x2.0 DN12° 2004 Z22/70/260/70/22*2,0 Z 22 70 90° 260 90° 70 22 2.00 6.72 50 160 12°
Z3G 260-70x2.5 DN3° 2005 Z22/70/260/70/22*2,5 Z 22 70 81° 260 81° 70 22 2.50 8.36 50 160
Z3G 260-70x2.5 DN6° 2006 Z22/70/260/70/22*2,5 Z 22 70 84° 260 84° 70 22 2.50 8.36 50 160
Z3G 260-70x2.5 DN10° 2007 Z22/70/260/70/22*2,5 Z 22 70 88° 260 88° 70 22 2.50 8.36 50 160 10°
Z3G 260-70x2.5 DN12° 2008 Z22/70/260/70/22*2,5 Z 22 70 90° 260 90° 70 22 2.50 8.36 50 160 12°
Z3G 260-70x3.0 DN3° 2009 Z22/70/260/70/22*3,0 Z 22 70 81° 260 81° 70 22 3.00 9.99 50 160
Z3G 260-70x3.0 DN6° 2010 Z22/70/260/70/22*3,0 Z 22 70 84° 260 84° 70 22 3.00 9.99 50 160
Z3G 260-70x3.0 DN10° 2011 Z22/70/260/70/22*3,0 Z 22 70 88° 260 88° 70 22 3.00 9.99 50 160 10°
Z3G 260-70x3.0 DN12° 2012 Z22/70/260/70/22*3,0 Z 22 70 90° 260 90° 70 22 3.00 9.99 50 160 12°
Z3G 260-85x2.0 DN3° 2013 Z22/85/260/85/22*2,0 Z 22 85 78° 260 78° 85 22 2.00 7.19 50 160
Z3G 260-85x2.0 DN6° 2014 Z22/85/260/85/22*2,0 Z 22 85 81° 260 81° 85 22 2.00 7.19 50 160
Z3G 260-85x2.0 DN10° 2015 Z22/85/260/85/22*2,0 Z 22 85 84° 260 84° 85 22 2.00 7.19 50 160 10°
Z3G 260-85x2.0 DN14° 2016 Z22/85/260/85/22*2,0 Z 22 85 88° 260 88° 85 22 2.00 7.19 50 160 14°
Z3G 260-85x2.0 DN16° 2017 Z22/85/260/85/22*2,0 Z 22 85 90° 260 90° 85 22 2.00 7.19 50 160 16°
Z3G 260-85x2.5 DN3° 2018 Z22/85/260/85/22*2,5 Z 22 85 78° 260 78° 85 22 2.50 8.95 50 160
Z3G 260-85x2.5 DN6° 2019 Z22/85/260/85/22*2,5 Z 22 85 81° 260 81° 85 22 2.50 8.95 50 160
Z3G 260-85x2.5 DN10° 2020 Z22/85/260/85/22*2,5 Z 22 85 84° 260 84° 85 22 2.50 8.95 50 160 10°
Z3G 260-85x2.5 DN14° 2021 Z22/85/260/85/22*2,5 Z 22 85 88° 260 88° 85 22 2.50 8.95 50 160 14°
Z3G 260-85x2.5 DN16° 2022 Z22/85/260/85/22*2,5 Z 22 85 90° 260 90° 85 22 2.50 8.95 50 160 16°
Z3G 260-85x3.0 DN3° 2023 Z22/85/260/85/22*3,0 Z 22 85 78° 260 78° 85 22 3.00 10.69 50 160
Z3G 260-85x3.0 DN6° 2024 Z22/85/260/85/22*3,0 Z 22 85 81° 260 81° 85 22 3.00 10.69 50 160
Z3G 260-85x3.0 DN10° 2025 Z22/85/260/85/22*3,0 Z 22 85 84° 260 84° 85 22 3.00 10.69 50 160 10°
Z3G 260-85x3.0 DN14° 2026 Z22/85/260/85/22*3,0 Z 22 85 88° 260 88° 85 22 3.00 10.69 50 160 14°
Z3G 260-85x3.0 DN16° 2027 Z22/85/260/85/22*3,0 Z 22 85 90° 260 90° 85 22 3.00 10.69 50 160 16°
Z3G 300-85x2.0 DN3° 2028 Z22/85/300/85/22*2,0 Z 22 85 80° 300 80° 85 22 2.00 7.82 50 200
Z3G 300-85x2.0 DN6° 2029 Z22/85/300/85/22*2,0 Z 22 85 83° 300 83° 85 22 2.00 7.82 50 200
Z3G 300-85x2.0 DN10° 2030 Z22/85/300/85/22*2,0 Z 22 85 87° 300 87° 85 22 2.00 7.82 50 200 10°
Z3G 300-85x2.0 DN13° 2031 Z22/85/300/85/22*2,0 Z 22 85 90° 300 90° 85 22 2.00 7.82 50 200 13°
Z3G 300-85x2.5 DN3° 2032 Z22/85/300/85/22*2,5 Z 22 85 80° 300 80° 85 22 2.50 9.73 50 200
Z3G 300-85x2.5 DN6° 2033 Z22/85/300/85/22*2,5 Z 22 85 83° 300 83° 85 22 2.50 9.73 50 200
Z3G 300-85x2.5 DN10° 2034 Z22/85/300/85/22*2,5 Z 22 85 87° 300 87° 85 22 2.50 9.73 50 200 10°
Z3G 300-85x2.5 DN13° 2035 Z22/85/300/85/22*2,5 Z 22 85 90° 300 90° 85 22 2.50 9.73 50 200 13°
Z3G 300-85x3.0 DN3° 2036 Z22/85/300/85/22*3,0 Z 22 85 80° 300 80° 85 22 3.00 11.63 50 200
Z3G 300-85x3.0 DN6° 2037 Z22/85/300/85/22*3,0 Z 22 85 83° 300 83° 85 22 3.00 11.63 50 200
Z3G 300-85x3.0 DN10° 2038 Z22/85/300/85/22*3,0 Z 22 85 87° 300 87° 85 22 3.00 11.63 50 200 10°
Z3G 300-85x3.0 DN13° 2039 Z22/85/300/85/22*3,0 Z 22 85 90° 300 90° 85 22 3.00 11.63 50 200 13°
Z3G 300-85x3.5 DN3° 2040 Z22/85/300/85/22*3,5 Z 22 85 80° 300 80° 85 22 3.50 13.55 50 200
Z3G 300-85x3.5 DN6° 2041 Z22/85/300/85/22*3,5 Z 22 85 83° 300 83° 85 22 3.50 13.55 50 200
Z3G 300-85x3.5 DN10° 2042 Z22/85/300/85/22*3,5 Z 22 85 87° 300 87° 85 22 3.50 13.55 50 200 10°
Z3G 300-85x3.5 DN13° 2043 Z22/85/300/85/22*3,5 Z 22 85 90° 300 90° 85 22 3.50 13.55 50 200 13°
Z3G 300-85x20_sn15_5 2748 Z22/85/300/85/22*2,0 Z 22 85 74.5° 300 74.5° 85 22 2.00 7.95 50 200
z3g30-80-290-80-30x2sn8 3245 Z30/(90°)80/(82°)292/(82°)80/(90°)30*2 Z 30 80 82° 290 82° 80 30 2.00 7.79
z3g30-80-292-80-30x2_50sn8 3244 Z30/(90°)80/(82°)292/(82°)80/(90°)30*2,5 Z 30 80 82° 292 82° 80 30 2.50 9.72

Kein passendes Profil gefunden? Fragen Sie bitte an.
