Z-Pfetten mit schlägen Lippen

Quick Find: Clear Filters

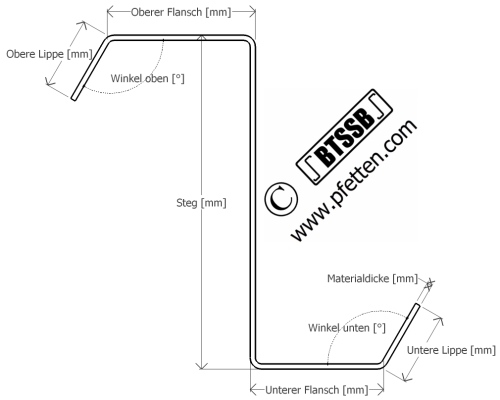

Bezeichnung Artikel -
Nr.
Form Obere
Lippe
[mm]
Winkel Oberer
Flansch
[mm]
Steg
[mm]
Unterer
Flansch
[mm]
Winkel Untere
Lippe
[mm]
Material-
dicke
[mm]
Gewicht
[kg/m]
Maß
B
[mm]
Maß
C
[mm]
Z140-1.5 2268 Z 15 135° 56 140 64 135° 15 1.50 3.33 37 70
Z140-2.0 2269 Z 15 135° 56 140 64 135° 15 2.00 4.41 37 70
Z180-1.5 2270 Z 15 135° 56 180 64 135° 15 1.50 3.80 47 90
Z180-2.0 2271 Z 15 135° 56 180 64 135° 15 2.00 5.04 47 90
Z210-1.5 2272 Z 15 135° 56 210 64 135° 15 1.50 4.15 62 90
Z210-2.0 2273 Z 15 135° 56 210 64 135° 15 2.00 5.51 62 90
Z210-2.5 2274 Z 15 135° 56 210 64 135° 15 2.50 6.86 62 90
Z120_1,50 2454 Z 15 120° 50 120 45 120° 15 1.50 2.84 29 60
Z120_2,00 2455 Z 15 120° 50 120 45 120° 15 2.00 3.78 29 60
Z140_1,50 2456 Z 15 120° 50 140 45 120° 15 1.50 3.07 34 70
Z140_2,00 2457 Z 15 120° 50 140 45 120° 15 2.00 4.10 34 70
Z180_1,50 2458 Z 20 120° 65 180 60 120° 20 1.50 4.02 44 90
Z180_2,00 2459 Z 20 120° 65 180 60 120° 20 2.00 5.35 44 90
Z210_1,50 2460 Z 20 120° 65 210 60 120° 20 1.50 4.37 59 90
Z210_2,00 2461 Z 20 120° 65 210 60 120° 20 2.00 5.82 59 90
Z210_2,50 2462 Z 20 120° 65 210 60 120° 20 2.50 7.28 59 90
Z240_2,00 2463 Z 20 120° 75 240 70 120° 20 2.00 6.61 44 150
Z240_2,50 2464 Z 20 120° 75 240 70 120° 20 2.50 8.26 44 150
Z240_3,00 2465 Z 20 120° 75 240 70 120° 20 3.00 9.91 44 150
Z270_2,00 2466 Z 20 120° 75 270 70 120° 20 2.00 7.08 49 170
Z270_2,50 2467 Z 20 120° 75 270 70 120° 20 2.50 8.85 49 170
Z270_3,00 2468 Z 20 120° 75 270 70 120° 20 3.00 10.62 49 170
Z300_2,00 2469 Z 20 120° 75 300 70 120° 20 2.00 7.55 59 180
Z300_2,50 2470 Z 20 120° 75 300 70 120° 20 2.50 9.44 59 180
Z300_3,00 2471 Z 20 120° 75 300 70 120° 20 3.00 11.33 59 180
ZS220-30 2320 Z 26.5 120° 76 220 69 120° 26.5 3.00 9.51
ZS220-35 2321 Z 26.5 120° 76 220 69 120° 26.5 3.50 11.04
ZED240x2,0 2561 Z 16 120° 76 240 68 120° 20 2.00 6.26 40 157
ZED240x2,5 2562 Z 16 120° 76 240 68 120° 20 2.50 7.83 40 157
ZED240x3,2 2563 Z 16 120° 76 240 68 120° 20 3.20 10.02 40 157
ZED300x2,5 2564 Z 27 120° 94 300 86 120° 31 2.50 10.11 50 197
ZED300x3,2 2565 Z 27 120° 94 300 86 120° 31 3.20 12.13 50 197
ZS140-15 2573 Z 22 120° 66 140 59 120° 22 1.5 3.6 34 70
ZS140-20 2574 Z 23.5 120° 66 140 59 120° 23.5 2 4.8 34 70
ZS140-25 2575 Z 25 120° 66 140 59 120° 25 2.5 6 34 70
ZS140-30 2576 Z 26.5 120° 66 140 59 120° 26.5 3 7.2 34 70
ZS160-15 2577 Z 24.5 120° 71 160 64 120° 24.5 1.5 4.02 34 90
ZS160-20 2578 Z 26 120° 71 160 64 120° 26 2 5.36 34 90
ZS160-25 2579 Z 27.5 120° 71 160 64 120° 27.5 2.5 6.7 34 90
ZS160-30 2580 Z 29 120° 71 160 64 120° 29 3 8.04 34 90
ZS180-15 2581 Z 22 120° 71 180 64 120° 22 1.5 4.2 44 90
ZS180-18 3318 Z 22.75 120° 71 180 64 120° 22.75 1.8 4.95 44 90
ZS180-20 2582 Z 23.5 120° 71 180 64 120° 23.5 2 5.6 44 90
ZS180-25 2583 Z 25 120° 71 180 64 120° 25 2.5 7 44 90
ZS180-30 2584 Z 26.5 120° 71 180 64 120° 26.5 3 8.4 44 90
ZS200-15 2585 Z 19.5 120° 76 200 69 120° 19.5 1.5 4.5 44 110
ZS200-20 2586 Z 21 120° 76 200 69 120° 21 2 6 44 110
ZS200-25 2587 Z 22.5 120° 76 200 69 120° 22.5 2.5 7.5 44 110
ZS200-30 2588 Z 24 120° 76 200 69 120° 24 3 9 44 110
ZS220-15 2589 Z 22 120° 76 220 69 120° 22 1.5 4.8 44 130
ZS220-20 2590 Z 23.5 120° 76 220 69 120° 23.5 2 6.4 44 130
ZS220-25 2591 Z 25 120° 76 220 69 120° 25 2.5 8 44 130
ZS240-15 2592 Z 24.5 120° 81 240 74 120° 24.5 1.5 5.22 54 130
ZS240-18 3348 Z 25.25 120° 81 240 74 120° 25.25 1.8 6.09 54 130
ZS240-20 2593 Z 26 120° 81 240 74 120° 26 2 6.96 54 130
ZS240-25 2594 Z 27.5 120° 81 240 74 120° 27.5 2.5 8.7 54 130
ZS240-30 2595 Z 29 120° 81 240 74 120° 29 3 10.44 54 130
ZS260-20 2596 Z 23.5 120° 81 260 74 120° 23.5 2 7.2 54 150
ZS260-25 2597 Z 25 120° 81 260 74 120° 25 2.5 9 54 150
ZS260-30 2598 Z 26.5 120° 81 260 74 120° 26.5 3 10.8 54 150
ZS260-40 2599 Z 29.5 120° 81 260 74 120° 29.5 4 14.4 54 150
ZS280-20 2600 Z 28.5 120° 91 280 84 120° 28.5 2 8.04 54 170
ZS280-25 2601 Z 30 120° 91 280 84 120° 30 2.5 10.11 54 170
ZS280-30 2602 Z 31.5 120° 91 280 84 120° 31.5 3 12.2 54 170
ZS280-35 2802 Z 33 120° 91 280 84 120° 33 3.5 13.09 54 170
ZS280-40 2603 Z 34.5 120° 91 280 84 120° 34.5 4 16.45 54 170
ZS300-20 2604 Z 18.5 120° 91 300 84 120° 18.5 2 8.04 54 190
ZS300-25 2605 Z 20 120° 91 300 84 120° 20 2.5 10.11 54 190
ZS300-30 2606 Z 21.5 120° 91 300 84 120° 21.5 3 12.2 54 190
ZS300-40 2607 Z 24.5 120° 91 300 84 120° 24.5 4 16.45 54 190
zs33_5-71-160-64-33_5x2 3099 Z 33.5 120° 71 160 64 120° 33.5 2 5.51
zs35-71-160-64-35x2_50 3100 Z 35 120° 71 160 64 120° 35 2.5 6.91
zs36_5-71-160-64-36_5x3 3101 Z 36.5 120° 71 160 64 120° 36.5 3 8.32
zs20-80-180-65-20x1_50 3110 Z 20 120° 80 180 65 120° 20 1.5 4.19 44 90
zs23_5-81-240-74-23_5x2 3102 Z 23.5 120° 81 240 74 120° 23.5 2 6.77
zs25-81-240-74-25x2_50 3103 Z 25 120° 81 240 74 120° 25 2.5 8.48
zs26_5-81-240-74-26_5x3 3104 Z 26.5 120° 81 240 74 120° 26.5 3 10.21
zs31-125-300-116-31x4 3149 Z 31 120° 125 300 116 120° 31 4 18.36 54 190
zs20-58-150-58-20x1_50 3611 Z 20 135° 58 150 58 135° 20 1.5 3.51
